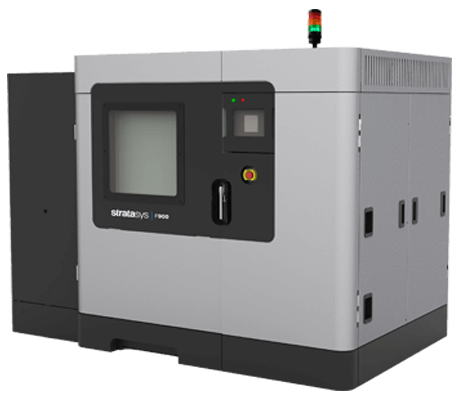

F900 & F900 PRO 3D Printers for Large Build Manufacturing

Versatile performance on an industrial scale.

Large build size, unbeatable materials range, and unfaltering accuracy – the Stratasys F900 sets a new standard in high performance 3D printing. Whether you’re printing jigs and fixtures, functional prototypes or production parts, the F900 delivers the versatility and reliability you need to get it right the first time, every time.

Download the brochure

Reliability. Accuracy. Versatility.

Rely on the F900’s to achieve real manufacturing with 3D printing. Its large build volume and proven accuracy provides consistent results needed to meet production demand. A diverse material selection ranging from engineering-grade thermoplastics to high-performance polymers lets you cover a varied range of applications.

Discover more with our Manufacturing Ready white paper >>

Complex parts.
Simple systems.

Manage your printing projects more efficiently with integrated GrabCAD Print™ and Insight™ Software. Print directly from CAD formats using smart default settings and tooltips. Access detailed views of models, trays and slice previews. Use Insight™ Software to fine-tune part performance and material use for greater cost efficiency.

Find our more about GrabCAD Print™ >>

Especificaciones

Tamaño y peso del sistema

2772 × 1683 × 2027 mm (109.1 × 66.3 × 78.1 in); 2869 kg (6325 lb)
Con la columna de luces de fabricación: 2772 × 1683 × 2281 mm (109.1 × 66.3 × 89.8 in)

Tamaño del modelo

914.4 × 609.6 × 914.4 mm (36 × 24 × 36 in)
La bandeja tiene dos zonas de modelado, para planchas de fabricación grandes o pequeñas.

Espesor de capa

0.508 mm (0.020 in)
ASA, ULTEM™ 1010 resin 0.330 mm (0.013 in)
ASA, ABS (M30, M30i), PC (todos los tipos), ULTEM™ resin (todos los tipos), FDM (todos los tipos), FDM Nylon 12CF, ST-130 0.254 mm (0.010 in)
ASA, ABS (todos los tipos), PC (todos los tipos), ULTEM™ resin (todos los tipos), PPSF, FDM (todos los tipos) 0.178 mm (0.007 in)
ASA, ABS (todos los tipos), PC (todos los tipos), FDM Nylon 12

Precisión

Las piezas se fabrican con una precisión de +/- 0.089 mm o +/- 0.0015 mm por mm (+/- 0.0035 in o +/- 0.0015 in por in), el valor que sea mayor.

La precisión de la pieza Z incluye una tolerancia adicional de +/- 0.000 mm de altura de laminado.

Nota: la precisión depende de la geometría. La especificación del nivel de precisión se determina a partir de datos estadísticos con un rendimiento dimensional del 95 %. Consulte el estudio de precisión de Fortus 900mc para obtener más información.

*Consulte las especificaciones detalladas medioambientales y de potencia en la guía de preparación del sitio de Fortus 900mc.

Download the Spec Sheet

Welcome to material freedom.

With the largest selection of materials of any FDM system, the F900 is made for versatility. Our materials range from standard to high-performance, allowing you to meet your application needs.

Standard

ASA	Strong, UV resistant FDM material available in 10 colors for rapid prototyping and production parts.	Product Details >>
ABS-M30	ABS-M30 is stronger than standard ABS, making it ideal for concept modeling, functional prototyping, manufacturing tools and end-use parts.	Product Details >>
ABS-M30i	This production-grade thermoplastic can be used in medical and food service industries due to its biocompatibility and ability to be sterilized.	Product Details >>
ABS-ESD7	Durable, static-dissipative FDM material for end-use electronic parts, jigs and fixtures and fuel containers.	Product Details >>

Engineering-grade

PC-ABS	PC-ABS is ideal for form, fit and function prototypes and low-volume production parts	Product Details >>
PC-ISO	PC-ISO is a biocompatible, heat-resistant thermoplastic suitable for food packaging, medical and pharmaceutical applications.	Product Details >>
PC	PC meets demanding needs for prototyping, and manufacturing fixtures.	Product Details >>
FDM Nylon 6	FDM Nylon 6 offers the best combination of strength and toughness of any FDM material along with good impact strength.	Product Details >>
FDM Nylon 12	FDM Nylon 12 is tough, has good impact resistance and high fatigue resistance, making it suitable for snap fit closures.	Product Details >>

High-performance

Antero 800NA	This PEKK-based material has excellent mechanical properties, chemical resistance and low outgassing characteristics.	Product Details >>
Antero 840CN03	Get a stronger lighter weight alternative to metal with Antero 840CN03, a high-performance PEKK-based electrostatic discharge (ESD) thermoplastic.	Product Details >>
PPSF	PPSF combines high strength with heat and chemical resistance for demanding functional testing and production applications.	Product Details >>
ULTEM™ 9085 resin	Flame, smoke and toxicity-rated ULTEM™ 9085 resin features a high strength-to-weight ratio and high thermal and chemical resistance.	Product Details >>
ULTEM™ 1010 resin	ULTEM™ 1010 resin offers superior mechanical, thermal and chemical resistance properties compared to other FDM thermoplastics.	Product Details >>
FDM Nylon 12CF	FDM Nylon 12CF (carbon filled) features the highest strength-to-weight ratio and stiffness of any FDM material.	Product Details >>
ST-130	ST-130 soluble material is engineered for sacrificial tooling applications for easy creation of hollow composites parts	Product Details >>

Software más inteligente

La impresora Stratasys F900 incluye los programas de software Insight y GrabCAD Print que simplifican la gestión y el control de sus proyectos de impresión.

GrabCAD Print facilita la impresión directamente a partir de sus formatos CAD profesionales favoritos. Incluye una configuración predeterminada, así como sugerencias y notificaciones que le sirven de guía en el proceso de impresión y le ofrece vistas detalladas de sus modelos, bandejas y secciones.
El software le ayuda a ajustar el rendimiento de las piezas y el uso de material para que pueda producir sus piezas de manera más eficiente. Permite a los equipos de diseño, ingeniería y fabricación colaborar más, ya que pueden trabajar en red y compartir la capacidad de fabricación 3D para maximizar la eficiencia y la productividad.
