F770 3D PRINTER

Print large on a small budget.

Print large parts up to a meter long with an affordable, large-format 3D printer. The F770 delivers spacious build capacity in an easy-to-use platform with the reliability and consistency of Stratasys FDM technology.

REQUEST A QUOTE
F770
PRODUCT BROCHURE

Make small work of big parts.

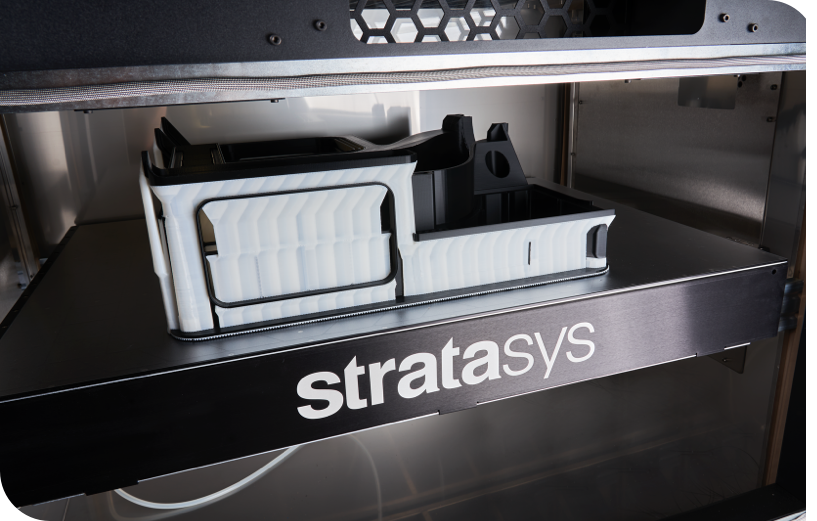

F770 printers can handle the big jobs, with the capacity you need to build sizable parts. With a 13 cubic-foot (372 liter) build volume, there’s plenty of room to print large manufacturing tools, prototypes and end-use parts. Interested in avoiding the pitfalls of printing large parts and learning how to optimize your results? Download our ebook.

Download Ebook

F770 Applications

Jigs and Fixtures

Lower the cost and lead time to make or outsource manufacturing tools by 3D printing them instead. The F770’s substantial build volume means you can create larger tools in a single piece rather then making them in multiple parts that have to be bonded together.

Prototyping

Prototyping large parts easily and in-house is now possible, thanks to the generous capacity of the F770. Print your designs in full size instead of using scaled-down versions. Validate concepts and fit faster, accelerating the design and production process.

End-Use Parts

3D printing is the perfect tool for short-run end-use parts that aren’t economical to produce with CNC machining or other traditional manufacturing methods. The F770 is right-sized to accommodate the needs of these limited production volumes whether it’s many smaller parts or a few large items.

DOWNLOAD LOOKBOOK

F770 materials

View All Materials

F770 printers use ABS-M30 (acrylonitrile butadiene styrene) and ASA (acrylonitrile styrene acrylate) standard thermoplastics. These widely used materials are optimal for the creation of durable but lightweight jigs and fixtures, as well as prototypes, concept models and end-use parts.

From CAD to Reality

From CAD to Reality

The part you design is the part you should get. But that’s not always the case, particularly as your part size grows. The F770 employs time-tested oven technology that ensures tight thermal management over every inch of your part, even if it’s three feet long. And our GrabCAD Print software features tools designed to handle big parts, so you can be sure that what you model in CAD is what comes out of the printer.

F770 delivers:

Large print capacity.
Enough space to print parts up to a meter long in an affordably priced system.
Stratasys FDM reliability.
Proven technology with print-and-forget dependability so what you design is what you get.
Simple, no-hassle operation.
An intuitive user interface, GrabCAD Print software for easy file prep and remote print monitoring, and soluble support for design freedom and hands-free post-processing.

The F770.

Complexity without complications.

The F770.

Complexity without complications.

Size isn’t the only notable feature of the F770. GrabCAD Print software provides an intuitive CAD-to-print workflow. Also included is Insight software, for power users who want to fine tune their files for greater control over print results. And all F770s come with MTConnect, ready to plug into your smart factory floor.

learn more

13 cu ft (372 liters) build volume

GrabCAD Print and Insight software

MTConnect ready

Compare the F770 to other FDM printers.

Which printer is right for you – compact efficiency, affordable large-capacity or premium capability? Compare these printer specifications for a quick overview of what Stratasys FDM technology has to offer.



F370

F770

F900

Tray size
and build plate shape

Tray size
and build plate shape

14 x 10 x 14 in.
(355 x 254 x 355 mm)

39 x 24 x 24 in.
(1,000 x 610 x 610 mm)

36 x 24 x 36 in.
(914 x 610 x 914 mm)

Materials

(printed synonymously)

Materials

8
2
16

Cartridge capacity

Cartridge capacity

Up to 90 cu in.

200 cu in.

Up to 500 cu in.

FDM Systems and Materials Overview
Video

A Customer’s View of the F770

For luxury appliance maker Sub-Zero, being able to print large parts provides efficiencies that just aren’t possible with smaller-capacity printers. Watch the video to see how Sub-Zero leverages the benefits of the F770.

Watch Now
Webinar

Large-scale printing. Simplified.

Get to know the printer that lets you scale up your print capability. In this webinar, you'll get a closer look at the features and benefits of the F770, and how its simple operation enables you to print large parts with reliable performance.

View the webinar

GrabCAD Print

Print directly from your CAD model, without time-wasting file conversion. Get familiar with the software that powers the F770’s CAD-to-print simplicity.

Learn More
