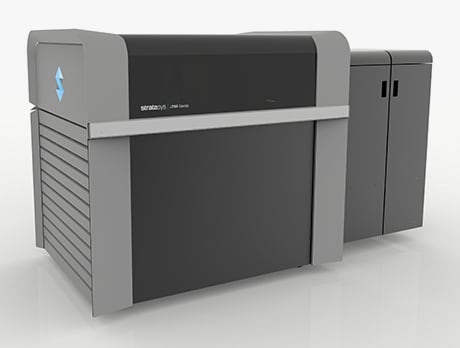

J720 Dental Printer

Maximum-Throughput, Full-Color Dental Printing

Expand your lab’s capabilities with full-color, multi-material 3D printing. The J720 is an all-in-one dental printer combining speed, large capacity, high resolution and access to up to six materials at once. Leverage the power of color, reduce remakes and produce results faster.

Work Smarter – Save time with the automatic tray arrangement in GrabCAD. Print multiple case types in multiple materials — all in one print — for faster production compared to smaller single-material printers.

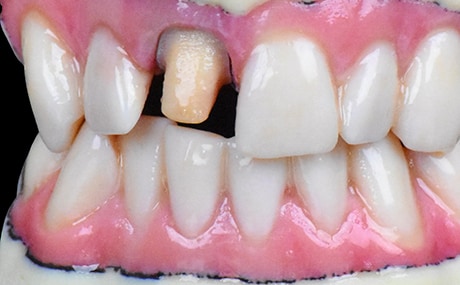

Work With Color – Increase patient case acceptance and reduce C&B remakes with realistic and accurately colored models of the patient’s mouth.

Work Faster – Print more cases per shift with 1.75X greater throughput than competing SLA and DLP printers.

Work Easier – Simplify the creation of orthodontic devices. The Separator DM coats models, making the removal of wax and acrylic residues easy.

Complete the interest form to receive notification when the J720 is available in your area.

Get a Quote

Dental Materials

• VeroDent (MED670) is a natural peach-tone material offering high detail, strength and durability
• VeroDentPlus (MED690) is a dark beige color and produces a very fine finish for accurate details
• Biocompatible MED610 creates rigid, transparent parts such as surgical guides for dental implant or orthopedic procedures
• Biocompatible MED620 is an opaque rigid material for accurate models and try-ins
• Biocompatible MED625FLX is a flexible, transparent material, enabling direct printing of indirect bonding trays as well as soft gingival masks for implantology cases

Additional Model Materials:

• Vero family of opaque materials including vibrant colors VeroCyanV, VeroMagentaV and VeroYellowV
• VeroClear transparent material
• Tango and Agilus30 families of flexible materials
• Transparent VeroClear

Digital Model Materials:

• Over 500,000 colors
• Materials to simulate soft-tissue
• Translucent color tints
• User-developed digital materials

Support Materials:

• SUP705 (WaterJet removable)
• SUP706B (Soluble)

Download the Materials Sheet

Specifications

SYSTEM SIZE AND WEIGHT

Printer: 1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)

Material Cabinet: 670 x 1,170 x 640 mm (26.4 x 46.1 x 25.2 in.); 152 kg (335 lbs.)

BUILD SIZE

490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)

LAYER THICKNESS

Horizontal build layers down to 14 microns (0.00055 in.)

Get the Spec Sheet

From CAD to Print

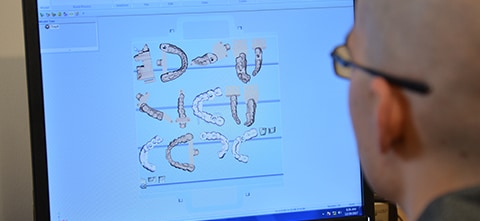

GrabCAD Print software guarantees a simplified, all-digital workflow that makes it easy to go from your CAD model to a printed part. The software’s efficient workflow streamlines job management in shared-office environments. Stay connected with remote print monitoring via the cloud.

• Optimize patient case scheduling
• Monitor multiple printers from a single source
• Automatically track material consumption and machine utilization

Learn More
